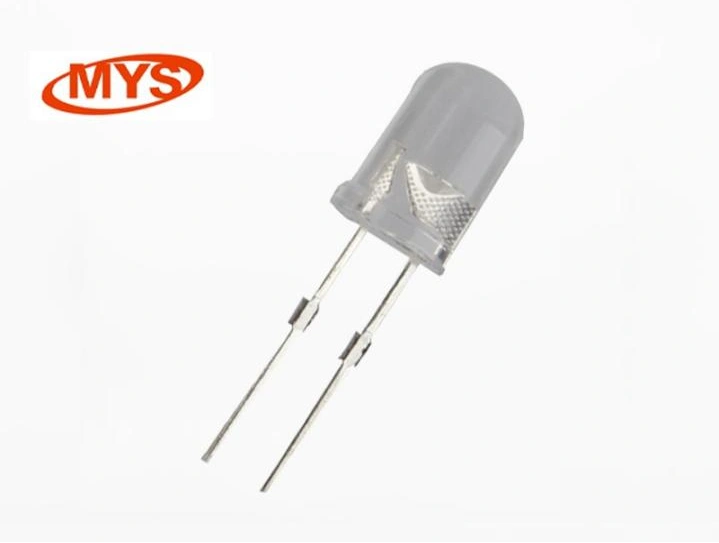

Infrared Emitting Diode

Model:MYS-5012

  • High reliability、Low power consumption、Low power consumption 、Long life、Colorless transparency epoxy package;
  • Applications:Infrared remote control systems, IR source for series sensors, The detector units of automatic control systems, IR source for optical counters and card readers;

1、Maximum ratings(Ta=25℃)

parametersymbolratingunit
 forward currentIFM100mA
reverse voltageVR5V
power consumptionPM200mw
perating temperature rangeTop55~100°C
storage temperature rangeTstg55~100°C
soldering temperature *Tsol260°C
*(up to 5mm from the body of the device,t≤3s)

2、Electro-optical Characteristics (Ta=25°C)

ParameterSymbolTest ConditionsMinTypeMaxunit
forward voltageVFIF=50mA1.281.45V
Reverse currentIRVR=5V5μA
axial radiand intensityIEIF=50mA100mW/Sr
peak emitting wavelengthλpIF=50mA940nm
spectral line half width⊿λIF=50mA50nm
Value angleθIF=50mA404550°
CapacitanceCtf=1.0MHz25pF
*the angle of action refers to an angle with an illumination greater than 20uW/c ㎡.

3、Photoelectric characteristic diagram

4、Precautions
①Soldering Conditions

  • Do solder in the lead frame about 2mm off the bottom of the resin.
  • Solder with iron: Do one time solder below 30W between 3 seconds.
  • Do not immerge the resin to the soldering stove.
  • Do not adjust the products position after soldered.
  • Do not put any stress to the lead frame when it is heated in soldering.

②Lead forming and cutting

  • Do Lead form below the tie bar cutting position.
  • Do not stress the resin case when forming the lead.
  • Do lead form before soldering.
  • Cutting the lead frame at high temperature may cause problems. Do cut the lead frame at the room temperature.

③Assembly

  • Do not put any stress to the lead frame while assembling.
  • When mounting products onto boards such as printed wired boards, the pitch between the two holes of such boards must the pitch of the products.

④Electrostatic protecting

  • These products are so sensitive to the static electricity that it need much care when in used. Particularly an over-current and over-voltage may cause damage to the products. Customer is requested to take adequate countermeasures to against static electricity charge and surge when handling the products.
  • A protection device must be installed in the driving circuit, which dose not exceed the maximum rating for surge current during on/off switching.
  • Proper grounding of products (Via 1 MΩ), use of conductive mat, semiconducting working uniform and shoes, and semiconducting containers are considered to be effective as countermeasures against static electricity and surge.
  • When the electrified product touches the low resistance part such as the metal face, these is a high possibility that it may be charge due to radical electric discharge. When grinding ,use of resisting element such as conductive mat is effective for parts where the product directly touches.
  • A tip of soldering iron is requested to be grounded. An ionizer should also be installed where risk of static generation is high.
  • Users are required to confirm those countermeasures when problems are caused by static electricity.


5、IRM External dimensions and pin formation
5.1 External dimensions and pin formation:

6、Product packaging
6.1 Packaging method: bagged.
6.2 Inner packaging: Use anti-static plastic bags for packaging, with each bag containing 1000 pieces/bag.
6.3 Outer packaging: Use cardboard boxes for packaging, placing 10 bags with a total of 10000 pieces per box.
