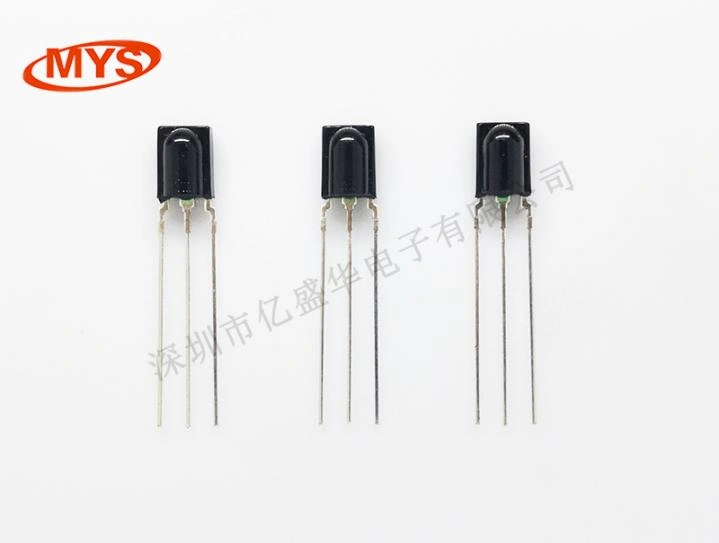

Model：MYS-828
1、Limit Parameter：
| Supply Voltage | VCC (v) | 6.0 | Operation Temperature | TOPR (℃) | -25 — 85 |
| Consumption | PD(mw) | 30 | Storage Temperature | TSTG (℃) | -40 — 125 |
2、Optoelectronic Parameter： (T=25℃ VCC=5V f0=37.9KHZ)
| Parameter | Symbol | Test Conditions | Min | Type | Max | unit |
| Operating Voltage | Vcc | 2.7 | 5.5 | V | ||
| Receive Distance | L | L5IR5 IF =300mA（test signal） | 8 | 15 | M | |
| Peak Wavelength | λp | – | 940 | – | nm | |
| Carrier Frequency | f0 | 37.9k | HZ | |||
| Receiving Angle | θ1/2 | distance attenuation1/2 | +/-45 | Deg | ||
| BMP Width | fBW | -3Db Bandwidth | 3.5 | 5.0 | 6.0 | kHz |
| Quiescent Current | Icc | no signal input | 0.25 | 0.30 | 0.40 | mA |
| Output Voltage Low | VOL | Vin=0V Vcc=5V | 0.2 | 0.4 | V | |
| Output Voltage High | VOH | Vcc=5V | 2.7 | 3.0 | – | V |
| Level Output Pulse Width | PWL | Vin=500μVp-p | 400 | 600 | 800 | μS |
| TPWH | Vin=50mVp-p | 400 | 600 | 800 | μS | |
※：Test on the optical axis with a width of 600/900 μ S is the transmitted pulse, taking the average of 50 received pulses within a receiving range of 5CM (see test waveform)。
3、Test Waveform：
4、Electrical Principle Block Diagram：
5、Receiving angle diagram：
6、Application circuit diagram：
7、Photoelectric characteristic diagram
8、IRM External dimensions and pin formation
8.1 External dimensions and pin formation：
9、Product packaging
9.1 Packaging method: bagged.
9.2 Inner packaging: Use anti-static plastic bags for packaging, with each bag containing 500 pieces/bag.
9.3 Outer packaging: Use cardboard boxes for packaging, placing 20 bags with a total of 10000 pieces per box.
